UL20862 Abrasion Resistant Polyurethane Spring Cable

Brand Name : WCH Cable

Model Number : UL20862

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pcs

Price : USD 0.24 per piece

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 100,000 pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton box

Cable Style : UL20862

Conductor Material : Highly Pure Copper Strands

Rated Temperature : 80°C

Insulation Material : Thermoplastic Polyurethane

Rated Voltage : 120V

Jacket Material : Thermoplastic Polyurethane

Extended Distance : Jacket OD x 4 times

Feature : Abrasion Resistant

Contact Now

UL20862 Abrasion Resistant Polyurethane Spring Cable

Spring Cable Style: UL20862;

Conductor material: highly pure copper wire strands;

Rated: 80°C, 120V;

Insulation material: quality thermoplastic polyurethane.

Sheath material: quality thermoplastic polyurethane.

Spring extended distance: Jacket OD x 4 times.

Outstanding feature: excellent abrasion resistant performance.

Spring # Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20862 3C 28 7/0.127 0.23 0.90 0.76 3.56 239.00
3C 26 7/0.16 0.23 1.00 0.76 3.78 150.00
3C 24 11/0.16 0.23 1.10 0.76 3.99 94.20
3C 22 17/0.16 0.23 1.30 0.76 4.42 59.40
3C 20 21/0.178 0.23 1.50 0.76 4.85 36.70
3C 18 34/0.178 0.23 1.70 0.76 5.28 23.20
3C 16 26/0.254 0.23 2.10 0.76 6.15 14.60
4C 28 7/0.127 0.23 0.90 0.76 3.79 239.00
4C 26 7/0.16 0.23 1.00 0.76 4.03 150.00
4C 24 11/0.16 0.23 1.10 0.76 4.28 94.20
4C 22 17/0.16 0.23 1.30 0.76 4.76 59.40
4C 20 21/0.178 0.23 1.50 0.76 5.24 36.70
4C 18 34/0.178 0.23 1.70 0.76 5.72 23.20
4C 16 26/0.254 0.23 2.10 0.76 6.69 14.60
5C 28 7/0.127 0.23 0.90 0.76 4.05 239.00
5C 26 7/0.16 0.23 1.00 0.76 4.32 150.00
5C 24 11/0.16 0.23 1.10 0.76 4.59 94.20
5C 22 17/0.16 0.23 1.30 0.76 5.13 59.40
5C 20 21/0.178 0.23 1.50 0.76 5.67 36.70
5C 18 34/0.178 0.23 1.70 0.76 6.21 23.20
5C 16 26/0.254 0.23 2.10 0.76 7.29 14.60
6C 28 7/0.127 0.23 0.90 0.76 4.32 239.00
6C 26 7/0.16 0.23 1.00 0.76 4.62 150.00
6C 24 11/0.16 0.23 1.10 0.76 4.92 94.20
6C 22 17/0.16 0.23 1.30 0.76 5.52 59.40
6C 20 21/0.178 0.23 1.50 0.76 6.12 36.70
6C 18 34/0.178 0.23 1.70 0.76 6.72 23.20
6C 16 26/0.254 0.23 2.10 0.76 7.92 14.60
7C 28 7/0.127 0.23 0.90 0.76 4.37 239.00
7C 26 7/0.16 0.23 1.00 0.76 4.68 150.00
7C 24 11/0.16 0.23 1.10 0.76 4.98 94.20
7C 22 17/0.16 0.23 1.30 0.76 5.59 59.40
7C 20 21/0.178 0.23 1.50 0.76 6.20 36.70
7C 18 34/0.178 0.23 1.70 0.76 6.81 23.20
7C 16 26/0.254 0.23 2.10 0.76 8.04 14.60
8C 28 7/0.127 0.23 0.90 0.76 4.56 239.00
8C 26 7/0.16 0.23 1.00 0.76 4.89 150.00
8C 24 11/0.16 0.23 1.10 0.76 5.21 94.20
8C 22 17/0.16 0.23 1.30 0.76 5.87 59.40
8C 20 21/0.178 0.23 1.50 0.76 6.52 36.70
8C 18 34/0.178 0.23 1.70 0.76 7.17 23.20
9C 28 7/0.127 0.23 0.90 0.76 4.74 239.00
9C 26 7/0.16 0.23 1.00 0.76 5.09 150.00
9C 24 11/0.16 0.23 1.10 0.76 5.43 94.20
9C 22 17/0.16 0.23 1.30 0.76 6.12 59.40
9C 20 21/0.178 0.23 1.50 0.76 6.82 36.70

UL20862 Abrasion Resistant Polyurethane Spring Cable

Tag: UL20862, UL20862 Spring cable, UL20862 Abrasion Resistant Cable


Wholesale UL20862 Abrasion Resistant Polyurethane Spring Cable from china suppliers

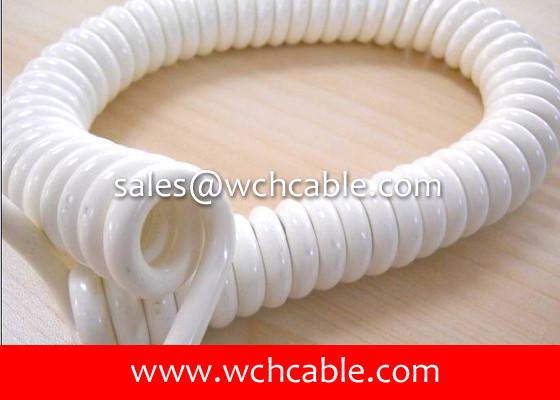

UL20862 Abrasion Resistant Polyurethane Spring Cable Images
