UL21032 Harvester Spring Cable

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL21032 Harvester Spring Cable

Brand Name : WCH Cable

Model Number : UL21032

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 200 pcs per box

Price : USD 0.122 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000 pcs

Delivery Time : 9 days for ready goods

Packaging Details : 200 pcs per box

Style Number : UL21032

Feature : Easy working

Conductor Material : Pure Copper Wire

UL Style : Optional

Conductor Gauge : 10-32AWG

Application : Harvester Interconnection

Rated Voltage : 30V

Type : Spring Cable

Contact Now

UL21032 Harvester Spring Cable

Rating: 60/80 deg C, 30 Vac

Conductor Size: 10-32AWG

Conductor Quantity: 2 ~ 50 cores

Insulation Material: Polypropylene PP

Jacket Material: Polyurethane PUR.

Executed Standard: Appliance Wiring Material UL758.

Application: harvester connect purpose.

Style Number Conductor Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21032 3C 28 7/0.127 0.23 0.90 0.76 3.96 239.00
3C 26 7/0.16 0.23 1.00 0.76 4.18 150.00
3C 24 11/0.16 0.23 1.10 0.76 4.39 94.20
3C 22 17/0.16 0.23 1.30 0.76 4.82 59.40
3C 20 21/0.178 0.23 1.50 0.76 5.25 36.70
3C 18 34/0.178 0.23 1.70 0.76 5.68 23.20
3C 16 26/0.254 0.23 2.10 0.76 6.55 14.60
4C 28 7/0.127 0.23 0.90 0.76 4.19 239.00
4C 26 7/0.16 0.23 1.00 0.76 4.43 150.00
4C 24 11/0.16 0.23 1.10 0.76 4.68 94.20
4C 22 17/0.16 0.23 1.30 0.76 5.16 59.40
4C 20 21/0.178 0.23 1.50 0.76 5.64 36.70
4C 18 34/0.178 0.23 1.70 0.76 6.12 23.20
4C 16 26/0.254 0.23 2.10 0.76 7.09 14.60
5C 28 7/0.127 0.23 0.90 0.76 4.45 239.00
5C 26 7/0.16 0.23 1.00 0.76 4.72 150.00
5C 24 11/0.16 0.23 1.10 0.76 4.99 94.20
5C 22 17/0.16 0.23 1.30 0.76 5.53 59.40
5C 20 21/0.178 0.23 1.50 0.76 6.07 36.70
5C 18 34/0.178 0.23 1.70 0.76 6.61 23.20
5C 16 26/0.254 0.23 2.10 0.76 7.69 14.60
6C 28 7/0.127 0.23 0.90 0.76 4.72 239.00
6C 26 7/0.16 0.23 1.00 0.76 5.02 150.00
6C 24 11/0.16 0.23 1.10 0.76 5.32 94.20
6C 22 17/0.16 0.23 1.30 0.76 5.92 59.40
6C 20 21/0.178 0.23 1.50 0.76 6.52 36.70
6C 18 34/0.178 0.23 1.70 0.76 7.12 23.20
6C 16 26/0.254 0.23 2.10 0.76 8.32 14.60
7C 28 7/0.127 0.23 0.90 0.76 4.77 239.00
7C 26 7/0.16 0.23 1.00 0.76 5.08 150.00
7C 24 11/0.16 0.23 1.10 0.76 5.38 94.20
7C 22 17/0.16 0.23 1.30 0.76 5.99 59.40
7C 20 21/0.178 0.23 1.50 0.76 6.60 36.70
7C 18 34/0.178 0.23 1.70 0.76 7.21 23.20
7C 16 26/0.254 0.23 2.10 0.76 8.44 14.60
8C 28 7/0.127 0.23 0.90 0.76 4.96 239.00
8C 26 7/0.16 0.23 1.00 0.76 5.29 150.00
8C 24 11/0.16 0.23 1.10 0.76 5.61 94.20
8C 22 17/0.16 0.23 1.30 0.76 6.27 59.40
8C 20 21/0.178 0.23 1.50 0.76 6.92 36.70
8C 18 34/0.178 0.23 1.70 0.76 7.57 23.20
9C 28 7/0.127 0.23 0.90 0.76 5.14 239.00
9C 26 7/0.16 0.23 1.00 0.76 5.49 150.00
9C 24 11/0.16 0.23 1.10 0.76 5.83 94.20
9C 22 17/0.16 0.23 1.30 0.76 6.52 59.40
9C 20 21/0.178 0.23 1.50 0.76 7.22 36.70

UL21032 Harvester Spring Cable

Related: spring cable, tpu spring cable


Wholesale UL21032 Harvester Spring Cable from china suppliers

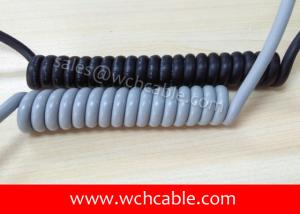

UL21032 Harvester Spring Cable Images
