30V PUR Curly Cable UL20563 26AWG 1Pair OD3.6mm VW-1 Half-matt Black L=280mm

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

30V PUR Curly Cable UL20563 26AWG 1Pair OD3.6mm VW-1 Half-matt Black L=280mm

Brand Name : WCH Cable

Model Number : WCH-260204280

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 100 PCS

Price : USD0.2112

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per month

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Rated Voltage : 30V

Jacket Material : PUR

Product Name : Curly Cable

UL Style : 20563

Curly Segment : 280mm

Colour : Half-matt Black

Contact Now

30V PUR Curly Cable UL20563 26AWG 1Pair OD3.6mm VW-1 Half-matt Black L=280mm

Spiral Cable

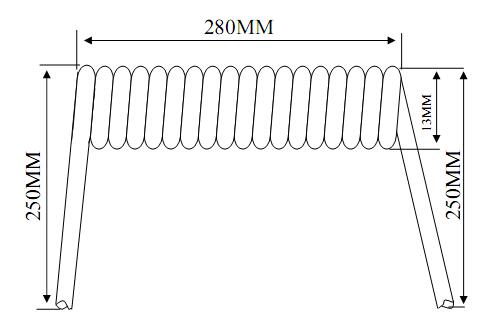

Construction		 Spiral Length (unexpanded) (mm) 280
Straight Ends (mm/mm) 250/250
Extension Ratio 　 1 : 3.5
Spiral Outer Ø (mm) 13.00
Tail Angle 　 90 degree
End Treatment 　 Cut Flat
Electrical
Capability		 Working Voltage (V) 30
Temp Range (°C) -40 to +60
Test Voltage (V) 2000/3000
Nominal Voltage (V) 300
Conductor Resistance (Ω/KM 20°C) 150
Insulation Resistance (MΩ/KM 20°C) 100
Standard
& Use		 UL Marking 　 Per UL20563
CUL Standard 　 I/II A
Flammability 　 VW-1, FT1
Raw Cable
Construction		 Conductor Size (AWG) 26
Insulation Material 　 TPEE (RoHS)
Insulation Diameter (mm) 1.00
Conductor Quantity 　 2 Cores
Assembly 　 Twisted Pair
Overall Diameter (mm) 3.60
Jacket Material 　 PUR (RoHS)
Surface Effect 　 Half-Matt Black


Wholesale 30V PUR Curly Cable UL20563 26AWG 1Pair OD3.6mm VW-1 Half-matt Black L=280mm from china suppliers
