PVC Flat Ribbon Cable UL2468 #24AWG 20Pins 1.50mm Pitch

WCH Cable Industrial Co., Ltd.
Contact Now

PVC Flat Ribbon Cable UL2468 #24AWG 20Pins 1.50mm Pitch

Brand Name : WCH Cable

Model Number : UL2468

Certification : UL, Cul, CSA, AWM

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD0.4332 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5,000,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 152.5 meters or 305 meters per reel, optional

UL Style : 2468

Gauge : 24AWG

Pitch Distance : 1.50mm

Pins Quantity : 20 Pins

Conductor Type : Tinned Stranded Copper Wire

Colour : Black with White stripe

Contact Now

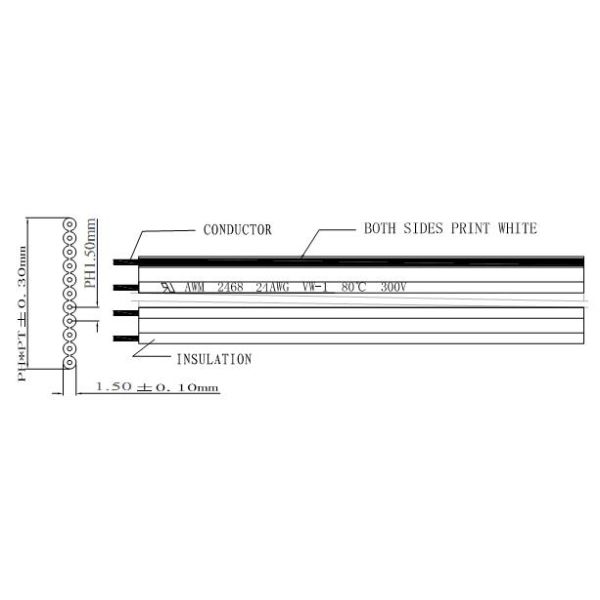

PVC Flat Ribbon Cable UL2468 #24AWG 20Pins 1.50mm Pitch

Conductor Specification (AWG) 24
Section Area (mm²) 0.2199
Material   Tinned stranded copper
Configuration (mm) TS7/0.20±0.007
Insulation Pitch Distance (mm) 1.50
Ave Thickness (mm) 0.42
Min Thickness (mm) 0.35
Over Diameter (mm) 1.50±0.10
Material   PVC (RoHS)
Colour   Black (White stripe)
Electrical
Capability
Rated Temperature (℃) 80
Rated Voltage (V) 300
Conductor Resistance (Ω/KM 20℃) 94.2
Insulation Resistance (MΩ/KM 20℃) 10
Flammability UL Fire Resistant   VW-1
CSA Fire Resistant   FT-1
Approval UL Style Number   2468
CSA Grade   I / A
Based Standard   Lead Free
Environmental Standard   RoHS & Reach Compliant

WCH Cable - Professional Manufacturer of Coil cable, Teflon cable, UL cable, UL2468


Wholesale PVC Flat Ribbon Cable UL2468 #24AWG 20Pins 1.50mm Pitch from china suppliers
